Name: BE QUIET! - BE QUIET BN294 Pure Power 11 600W 80PLUS Gold activePFC
Brand: BE QUIET!
SKU: 10421991
Availability: PreOrder

BE QUIET! BE QUIET BN294 Pure Power 11 600W 80PLUS Gold activePFC

Varenr.:

BN294

EAN:

4260052186350

Ekspertomtaler: 7 omtaler

Strøm 600W
80 PLUS certification 80 PLUS Gold

PURE POWER 11 600W

BN294

Exceptionally Quiet, Superior Reliability, Great Value

Pure Power 11 600W offers peerless dependability and best-in-class features. Whether you’re assembling a very quiet system, building a multi-GPU gaming system, or upgrading an existing PC, your build will benefit from this PSU that simply has the best combination of features at a very popular price.

Features:

80 PLUS® Gold efficiency (up to 92%)
Two strong 12V-rails
Stable operation thanks to Active Clamp and Synchronous Rectifier (SR) technology
DC-to-DC conversion for even tighter voltage regulation under heavy cross-loading conditions
Silence-optimized 120mm be quiet! fan
Full suite of top safety features
5-year manufacturer’s warranty

Specifications:

Continuous power (W)	600
Peak power (W)	650
Form factor ATX 12V	Version 2.4
Form factor EPS 12V	Version 2.92
Modular cable management	-
Topology	Active Clamp + SR + DC/DC
Wire-free design (DC-side)	-
Voltage (Vac)	100 - 240
Frequency (Hz)	50 - 60
Input current (A)	8 / 5
PFC	active
Power factor at 100% load	>0.99
Compliant to Intel C6/C7	✓
Power consumption in standby (W)	0.13
Average life time (h / 25°C)	100000
Operating temperature up to (°C)	40

Energihåndtering

Total strøm

600 W

Toppeffekt

650 W

AC-inngangsspenning

100 - 240 V

AC-inngangsfrekvens

50 - 60 Hz

Innput-strøm

8 A

Strømfaktor

0,99

Power Factor Correction (PFC) type

Aktiv

Kombinert strøm (+3.3V)

140 W

Kombinert strøm (+12V)

576 W

Kombinert strøm (+5V)

140 W

Kombinert strøm (-12V)

3,6 W

Kombinert strøm (+5Vsb)

15 W

Max output current (+3.3V)

25 A

Max output current (+12V1)

32 A

Max output current (+12V2)

28 A

Max output current (+5V)

18 A

Max output current (-12V)

0,3 A

Max output current (+5Vsb)

3 A

Holdtid

23 ms

Effektivitet

92%

Strømbeskyttelsesfunksjoner

Overstrøm, Overstrøm, Over-spenning (volt), Overoppheting, Kortslutning, Under voltage

Tilkoblingsevne

Strømkontakt for hovedkort

20+4 pin ATX

Hovedkort strømkabellengde

55 cm

Antall SATA-strømtilkoblinger

Antall PATA-strømtilkoblinger

SATA kraftledning lengde

500,650,800 mm

Perifere (Molex) strømkontakter (4-pin)

PCI Express-strømtilkobling (6+2-pin)

PCI Express-strømforsyning kabellengde

50 cm

CPU strømtilkobling (4+4-pin)

CPU kraftledning lengde

60 cm

Diskettstasjonstilkobling

Kabeltype

Non-Modular

Ytelse

Formål

Strømforsyningsenhetens formfaktor

ATX

80 PLUS-sertifisering

80 PLUS Gold

ATX-versjon

2.4

EPS-versjon

2.92

Bæreteknologi

Riller

Design

Produktfarge

Sort

Viftediameter

12 cm

Antall vifter

1 vifter

Sertifikater

Samsvarssertifikat

RoHS

Sertifisering

ErP, WEEE

Sikkerhet

CE, CB, TÜV, FCC, cTUVus, RCM, BSMI, CU, CCC

Vekt og dimensjoner

Bredde

150 mm

Dybde

150 mm

Høyde

86 mm

Vekt

2,07 kg

Datainnpakking

Bruksanvisning

Pakkebredde

210 mm

Pakkedybde

240 mm

Pakkehøyde

96 mm

Pakkevekt

2,37 kg

Pakketype

Boks

Tekniske detaljer

Bærekraftsertifikater

ENERGY STAR

Logistikk data

Masterkassens (ytterkassens) bredde

326 mm

Masterkassens (ytterkassens) lengde

514 mm

Masterkassens (ytterkassens) høyde

241 mm

Masterkassens (ytterkassens) bruttovekt

15,4 kg

Harmonisert system (HS)-kode

84733020

Produkter per masterkasse (ytterkasse)

6 stykker

Andre funksjoner

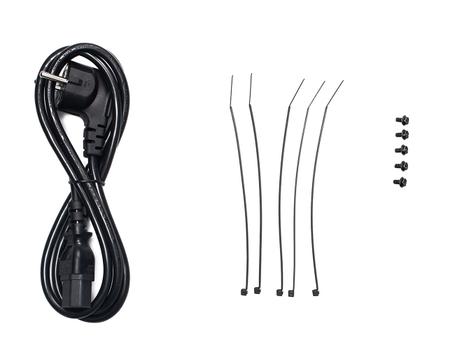

Skruer inkludert

Strips medfølger

Støy nivå (stille modus, <30%)

9,1 dB

Støy nivå (rolig modus, 50%)

9,6 dB

Støy nivå (full-last modus, 100%)

22,9 dB
